The best compact crossbow scopes
Short and light is easy to find. Short, light and rated for a 400 fps bow is not, and that is the whole problem with this category.
String & Stock earns a commission when you buy through our links, at no extra cost to you. Prices come from Amazon and change; the date beside every price is when we last verified it. Full disclosure.
Ranked
Quick picks
| # | Product | Objective | Score | Price |
|---|---|---|---|---|
| Rank 1 | Hawke XB30 Pro SR 1-5x24 | 24 mm | 8.9 | $233.62Amazon |
| Rank 2 |  Excalibur Dead Zone | 32 mm | 8.0 | $119.99Amazon |
| Rank 3 |  TRUGLO 4x32 Compact Crossbow Scope | 32 mm | 7.0 | $53.75Amazon |
| Rank 4 |  CVLIFE 4x32 Compact | 32 mm | 7.4 | $62.99Amazon |
| Rank 5 |  UTG True Hunter 4x32 Compact | 32 mm | 6.6 | $74.45Amazon |
The best compact crossbow scope is the Hawke XB30 Pro SR 1-5x24: a 24 mm objective, the smallest published on this site, in a 30 mm tube with a 215 to 450 fps speed selector. The trap in this category is that most genuinely short scopes are rated to 350 fps or less, which is slower than almost every compact crossbow sold.
People come to this category for one of two reasons. Either the bow is short - a narrow, compact machine built for a blind or a saddle, where a long scope looks and feels wrong - or the bow is carried a long way and every ounce on top of it is an ounce you notice. Both are legitimate, and both are easy to satisfy badly.
The problem is a mismatch nobody warns you about. Compact crossbows are generally fast: the bows on our best compact crossbows list publish 390 to 450 fps. Compact scopes, meanwhile, are disproportionately budget scopes, and budget crossbow scopes are frequently calibrated for 250 to 350 fps. Put a 350 fps scope on a 410 fps bow and every aim point past the first one is wrong - not slightly wrong, wrong by yards. That is why this page ranks on published speed range alongside physical size, and why the smallest scope here is not the top pick.
In detail
Five compact scopes, with the speed range stated
Hawke XB30 Pro SR 1-5x24
A speed-selector power ring covering 215 to 450 fps, which is the broadest span any scope on this site publishes. Dial your bow's speed and the reticle's aim points line up with your trajectory. 16-layer multi-coated glass in a 30 mm mono-tube does the rest. If you own more than one bow, or expect to change bows, this is the scope that follows you.
| Published spec | Value |
|---|---|
| Speed range | 215-450 fps |
| Magnification | 1-5x |
| Objective | 24 mm |
| Tube | 30 mm |
| Reticle | Illuminated SR, stepless rheostat |
| Glass | 16-layer fully multi-coated |
| Weatherproofing | Nitrogen purged, waterproof, fog proof |
What it does well
- 215-450 fps covers every bow on this site, from the SAS recurve to the R470
- Stepless illumination rheostat rather than fixed brightness steps
- 30 mm mono-tube passes more light than a 1-inch body
- Metal screw-in lens covers rather than rubber flip caps
Where it falls short
Our rubric
- 9.8
- 8.8
- 8.6
- 8.6
- 8.4
Excalibur Dead Zone
An adjustable speed dial from 300 to 410 fps driving Excalibur's chevron reticle from 20 to 60 yards. A chevron has a point rather than a center, which some shooters find faster to place on a deer's chest than a dot that covers the spot you are aiming at. The 60-yard ceiling is honest about crossbow range.
| Published spec | Value |
|---|---|
| Speed range | 300-410 fps |
| Tube | 1 in |
| Objective | 32 mm |
| Reticle range | 20-60 yd |
| Reticle | Excalibur chevron |
| Glass | Multi-coated |
| Rings | 1-inch rings |
What it does well
- The chevron point does not obscure the aiming spot the way a dot does
- A 20-60 yard reticle matches real crossbow shot distances
- Adjustable speed dial at a mid-budget price
Where it falls short
Our rubric
- 7.6
- 7.8
- 8.4
- 7.6
- 8.6
TRUGLO 4x32 Compact Crossbow Scope
A one-piece aircraft-aluminum 4x32 with a bolt-drop-compensating reticle, nitrogen filling and weaver rings in the box. The spec worth noticing is 4 inches of eye relief: a crossbow fires forward into its own scope, and generous eye relief is how you keep the ocular off your eyebrow.
| Published spec | Value |
|---|---|
| Magnification | 4x |
| Objective | 32 mm |
| Eye relief | 4 in |
| Reticle | BDC / rangefinder, bolt-drop compensating |
| Tube | One-piece aircraft-grade aluminum, matte |
| Weatherproofing | Nitrogen filled, water and shock resistant |
| Included | Weaver-style scope rings, elastic lens caps |
What it does well
- 4 inches of eye relief, the most generous figure published here
- Rings included
- Leaf-spring fingertip windage and elevation adjustments
- Cheapest branded scope on the site
Where it falls short
Our rubric
- 5.4
- 7.0
- 6.8
- 6.4
- 9.0
CVLIFE 4x32 Compact
7.7 inches and 11.3 ounces with a 250 to 350 fps speed adjustment and six aim points to 70 yards. The length is the reason it is here: on a 31-inch bullpup, a 9-inch scope hangs off both ends. Note the speed ceiling of 350 fps — this is a scope for a slower bow.
| Published spec | Value |
|---|---|
| Speed range | 250-350 fps |
| Magnification | 4x |
| Objective | 32 mm |
| Length | 7.7 in |
| Weight | 11.3 oz |
| Reticle | Six aim points with six horizontal lines, 20-70 yd |
| Durability | Aircraft-grade aluminum, shock tested to 800 G |
What it does well
- 7.7 inches and 11.3 ounces suit a short, light bow
- Six aim points plus ranging lines at a low price
- Rings, caps and batteries included
Where it falls short
Our rubric
- 6.4
- 7.0
- 7.4
- 6.8
- 9.0

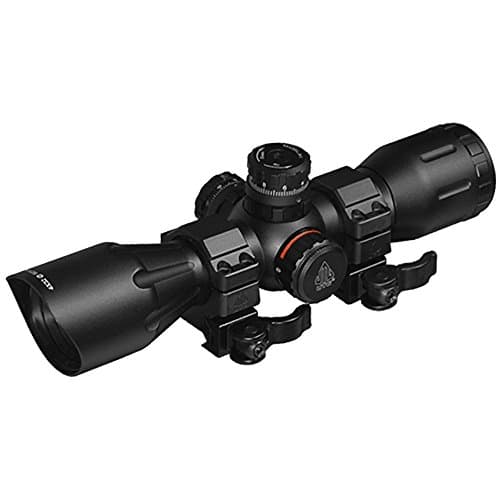

UTG True Hunter 4x32 Compact
A compact 4x32 with broadband lens coating. The listing publishes one feature line and nothing else, so there is no reticle, speed range or eye relief figure we can give you. It is here as a budget backup rather than a recommendation.
| Published spec | Value |
|---|---|
| Magnification | 4x |
| Objective | 32 mm |
| Glass | Broadband lens coating |
| Reticle | |
| Speed range | |
| Eye relief |
What it does well
- Compact and inexpensive
- Broadband coated glass at the price
Where it falls short
Our rubric
- 5.0
- 6.6
- 6.0
- 6.2
- 8.4
How we picked
Published objective diameter first, because the objective bell is what sets a scope's bulk and how high it has to sit above the rail. Then published length and weight where the listing prints them - most do not. Then the published speed range, which decides whether the scope can be used on your bow at all. Our scoring axes are on the methodology page.
The size and speed table
| Scope | Objective | Tube | Published length / weight | Speed range |
|---|---|---|---|---|
| Hawke XB30 Pro SR 1-5x24 | 24 mm | 30 mm | 215-450 fps | |
| Excalibur Dead Zone | 32 mm | 1 in | 300-410 fps | |
| TRUGLO 4x32 Compact | 32 mm | 1 in, one-piece | ||
| CVLIFE 4x32 Compact | 32 mm | 7.7 in / 11.3 oz | 250-350 fps | |
| UTG True Hunter 4x32 Compact | 32 mm |
Objective size is the real compactness figure
A scope's bulk is set at the front. A 24 mm objective bell is smaller in diameter than a 32 mm one, which means the tube sits lower over the rail, the whole assembly is lighter, and the bow fits a narrow case more easily. That is why the Hawke XB30 Pro leads here on a figure that does not look like a size spec: 24 mm is the smallest objective published by any crossbow scope on this site.
The cost of a small objective is light transmission, and that is a real trade rather than a rounding error. If you hunt the first and last twenty minutes of the day, a bigger objective genuinely helps, and the ranking inverts - that page is best low-light crossbow scopes, where objective size is the top axis in the other direction. You cannot have both; decide which twenty minutes matter more to you.
The speed-range trap, in detail
A crossbow scope's stacked aim points are calibrated to a specific arrow speed. A speed selector ring lets you tell the scope what your bow does, and from there the 30, 40 and 50-yard marks are approximately correct. Outside the printed range, the ring cannot be set correctly and the marks past the 20-yard zero are decoration.
So the order of operations is: find your bow's published speed, then filter scopes by whether that number falls inside their range, then compare size. The CVLIFE 4x32 is the most physically compact scope on this site by its own published figures - 7.7 in and 11.3 oz - and it is unusable as a calibrated optic on a 400 fps bow, because its range stops at 350. Crossbow speed rings explained covers what to do when your bow falls outside a scope's range, and crossbow speed and fps covers how much the figure matters in the first place.
What the top three are each for
Hawke XB30 Pro SR 1-5x24
The widest speed range on this site at 215-450 fps, the smallest objective at 24 mm, a 30 mm tube, 16-layer fully multi-coated glass, an illuminated SR reticle with a stepless rheostat, and nitrogen-purged weatherproofing. It is also a true 1x at the bottom of the zoom range, which is the setting you want for a close shot in thick cover. If you have a compact bow and you want one scope that will also fit the next one, this is it.
Excalibur Dead Zone
A 1 in tube - the slimmest here - with a 32 mm objective, a 300-410 fps range, multi-coated glass and 1-inch rings included. The chevron reticle is the interesting part: instead of stacked dots it uses a chevron that brackets the target, which some shooters find faster to acquire than a dot stack. It is built for Excalibur's recurve bows and is a natural pairing with the Excalibur Charger EXT crank on a Micro series bow.
TRUGLO 4x32 Compact Crossbow Scope
The replacement-scope answer. A one-piece aircraft-grade aluminum tube, a bolt-drop-compensating rangefinder reticle, 4 in of published eye relief, nitrogen filling, and Weaver-style rings in the box. TRUGLO does not publish a speed range, which matters: without one you are relying on your own 20-yard zero plus holdover rather than on calibrated marks. For a short-range blind bow that is often enough.
Our pick
The Hawke XB30 Pro, because it is the only scope here that is genuinely compact at the front and rated for the speed a compact crossbow actually shoots. The Excalibur Dead Zone is the pick for a recurve in the 300-410 fps band, especially if you prefer a chevron to a dot stack. The TRUGLO is the sensible cheap replacement for a bundled scope on a close-range bow. The CVLIFE 4x32 is the pick only if your bow publishes 350 fps or less - and if it does, it is a genuinely small, light, well-finished optic for the money.
What we would not do to save bulk
- Fit a rifle scope. The eye relief, the reticle calibration and the recoil profile are all different. Crossbow scope vs rifle scope explains why in detail.
- Buy a scope whose speed range excludes your bow. The aim points are the reason you bought a crossbow scope.
- Mount low enough to foul the rail or the string path. Check clearance with the bow cocked, before you tighten anything.
- Skip the rings. A compact scope on bad rings is a scope that moves, and a scope that moves is a zero that is not real.
Finish the job properly
A new scope on a compact bow needs mounting, leveling and a zero in that order. Crossbow scope mounting covers ring torque, eye relief and leveling, and how to sight in a crossbow covers the twelve-bolt zero sequence - set the speed ring first, because changing it after you zero moves every mark. If you hunt with fixed broadheads, also confirm the zero with the heads you will hunt: how to sight in a crossbow with broadheads.
