The best fixed blade crossbow broadheads

Nothing to open, nothing to fail, better penetration. The variables are blade thickness, how short the ferrule is, and whether it is one piece.

By Mike M.Updated

String & Stock earns a commission when you buy through our links, at no extra cost to you. Prices come from Amazon and change; the date beside every price is when we last verified it. Full disclosure.

G5 Montec M3 100 gr from G5 Outdoors
Top pickBest fixed blade
G5 Montec M3 100 gr from G5 Outdoors

G5 Montec M3 100 gr

G5 Outdoors
9.6/ 10One-piece steel, nothing to come loose

One solid piece of 420 stainless steel with a 1-1/16 inch cut, no vents, cut-on-contact geometry and every head spin-tested before it ships.

Read the full assessment

Ranked

Quick picks

#ProductBlade thicknessScorePrice
Rank 1
G5 Montec M3 100 gr from G5 Outdoors

G5 Montec M3 100 gr

One-piece steel, nothing to come loose

Not published9.6$54.95G5 Montec M3 100 gr
Rank 2
TenPoint EVO-X Montec from TenPoint

TenPoint EVO-X Montec

A Montec built for crossbow speed

Not published9.5$44.99EVO-X Montec
Rank 3
Slick Trick GrizzTrick Pro Series from Slick Trick

Slick Trick GrizzTrick Pro Series

The most total cut from a fixed head

0.035 in9.5$49.50GrizzTrick Pro Series
Rank 4
QAD Exodus Crossbow Full Blade 100 gr from QAD

QAD Exodus Crossbow Full Blade 100 gr

A steep cutting angle in a very short head

Not published9.5$53.99Exodus Crossbow Full Blade 100 gr
Rank 5
Ramcat Crossbow Hydroshock-X from Ramcat

Ramcat Crossbow Hydroshock-X

Rear-sharpened blades and a pivoting head

0.032 in9.4$34.99Crossbow Hydroshock-X

#ad Prices come from Amazon and change. How this site is funded. Scores are our published rubric — how we evaluate.

The short answer

A fixed blade broadhead has no moving parts, spends no energy opening, and penetrates better than a mechanical of the same weight. The best versions are one-piece metal-injection-molded steel — no blades to replace, no screws to loosen, no collar to perish.

For a crossbow specifically, the fixed head is the reliability choice. Crossbow velocity is what defeats mechanical retention systems, and a one-piece steel head has nothing for velocity to defeat.

In detail

Five fixed heads

01One-piece steel, nothing to come loose

G5 Montec M3 100 gr

G5 Outdoors
9.6/ 10

One solid piece of 420 stainless steel with a 1-1/16 inch cut, no vents, cut-on-contact geometry and every head spin-tested before it ships. There are no blades to replace, no screws to loosen and no collar to fail. For a fast bow, a fixed one-piece head is the most reliable thing you can put on the front of a bolt.

Published specValue
Weight100 gr (125 also offered)
Cutting diameter1-1/16 in
Blades3, fixed
ConstructionOne-piece MIM, 420 stainless steel, no vents
SharpeningDiamond cut, cut-on-contact
Quality control100% spin-tested
Per pack3

Why we recommend it

  • One piece: no blades, screws or collars to fail
  • Every head spin-tested before it ships
  • Resharpenable, so a head survives more than one animal
  • Cut-on-contact geometry starts cutting immediately

Good to know

A 1-1/16 inch cut is narrow next to a 2.25-inch mechanical

Our rubric

Flight
9.2
Penetration
9.8
Consistency
9.7
Durability
9.8
Value
9.3
02A Montec built for crossbow speed

TenPoint EVO-X Montec

TenPoint
9.5/ 10

Built for TenPoint by G5, which is to say it is a Montec specified for high-speed crossbows: 100 grains, three fixed blades, a 1-1/8 inch cut, one-piece MIM construction and a 100 percent steel ferrule. If you shoot a fast bow and want a fixed head, this is the one that was designed for the application.

Published specValue
Weight100 gr
Cutting diameter1-1/8 in
Blades3, fixed
ConstructionOne-piece MIM, 100% steel ferrule
Designed forHigh-speed crossbows
SharpeningDiamond cut
Per pack3

Why we recommend it

  • Specified for high-speed crossbows, not adapted from a compound head
  • One-piece construction with nothing to come loose
  • Made by G5, whose Montec is the reference fixed head

Good to know

A 1-1/8 inch cut is narrow by mechanical standards

Our rubric

Flight
9.3
Penetration
9.8
Consistency
9.7
Durability
9.8
Value
9.0
03The most total cut from a fixed head

Slick Trick GrizzTrick Pro Series

Slick Trick
9.5/ 10

Four .035-inch stainless Lutz blades in a short Super Steel ferrule giving 2-1/2 inches of total cut, held by the Alcatraz blade lock. Short, fat and fixed: it flies like a field point because there is barely any ferrule forward of the blades to plane in the wind.

Published specValue
Weight100 gr
Total cut2-1/2 in (1-1/4 in + 1-1/4 in)
Blade thickness0.035 in
BladesStainless Lutz, 4
FerruleSuper Steel
Blade lockAlcatraz
TipNot published

Why we recommend it

  • 2-1/2 inches of total cut is the widest fixed-head figure here
  • A short ferrule means less wind planing
  • Alcatraz blade lock keeps blades seated through bone
  • Blades are replaceable rather than the whole head

Good to know

Four fixed blades need a well-tuned bow to fly cleanly

Our rubric

Flight
9.3
Penetration
9.7
Consistency
9.5
Durability
9.7
Value
9.2

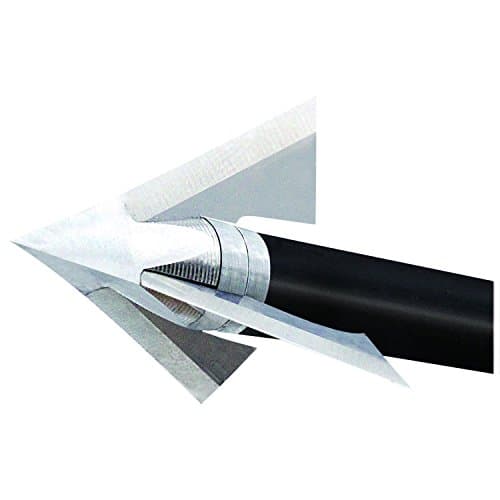

04A steep cutting angle in a very short head

QAD Exodus Crossbow Full Blade 100 gr

QAD
9.5/ 10

A deliberately short fixed head with a steep cutting angle and a published 1.25-inch cut, built for crossbow bolts and made in the USA. The short body is the design argument: less length forward of the shaft means less lever for a crosswind to push on, which is why short fixed heads group better than long ones.

Published specValue
Weight100 gr
Cutting diameter1.25 in
Blade thicknessNot published
TypeFixed, full blade
BladesReplaceable, cut-on-contact
DesignSuper short body, steep cutting angle
Built forCrossbow bolts
OriginMade in the USA
Per pack3

Why we recommend it

  • A very short body reduces wind planing
  • A 1.25 inch cut is wide for a fixed head
  • The only head here specified for crossbow bolts and made in the USA

Good to know

A steep angle needs energy to drive through bone

Our rubric

Flight
9.5
Penetration
9.5
Consistency
9.5
Durability
9.7
Value
9.2

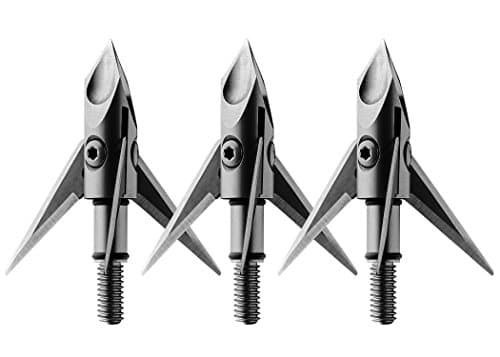

05Rear-sharpened blades and a pivoting head

Ramcat Crossbow Hydroshock-X

Ramcat
9.4/ 10

A pivoting fixed head: it moves on impact to keep the arrow driving forward even when it meets bone, with .032-inch rear-sharpened stainless blades cantilevered over the shaft. The listing also states it meets broadhead regulations in all 50 states, which is a genuinely useful thing to know before you order.

Published specValue
Weight100 gr
Blade thickness0.032 in
TypeFixed, pivoting
BladesRear-sharpened stainless, blade-over-shaft
AerodynamicsDeep tip lobes form an airfoil
LegalityMeets broadhead regulations in all 50 states
Cutting diameterNot published

Why we recommend it

  • A pivoting head keeps driving forward through bone
  • Rear-sharpened blades keep cutting if there is no pass-through
  • Legal in all 50 states, which the listing states outright
  • Cheapest broadhead on this page

Good to know

No cutting diameter published

Our rubric

Flight
9.3
Penetration
9.7
Consistency
9.2
Durability
9.4
Value
9.8

How we picked

One-piece construction weighted heavily, then published blade thickness, cut, and ferrule length — because a short ferrule planes less in wind. See our methodology.

The comparison

HeadWeightCutBladesThicknessConstruction
G5 Montec M3100 gr1-1/16 in3Not publishedOne-piece MIM 420 stainless, 100% spin tested
TenPoint EVO-X Montec100 gr1-1/8 in3Not publishedOne-piece MIM, 100% steel ferrule, built by G5
Slick Trick GrizzTrick100 gr2-1/2 in total4.035 inSuper Steel ferrule, Alcatraz blade lock
QAD Exodus Crossbow100 gr1.25 inFull bladeNot publishedVery short body, made in the USA
Ramcat Hydroshock-X100 grNot publishedPivoting, rear-sharpened.032 inBlade-over-shaft, pivoting head
The two Montecs are the only one-piece heads here. The Slick Trick publishes the thickest blades at .035 inch; QAD publishes a cut diameter for the Exodus but no blade thickness.

What separates fixed heads

One-piece versus assembled

A one-piece metal-injection-molded head is the whole thing cast as a single unit: ferrule, tip and blades. There is no blade to come loose, no screw to back out, no blade lock to fail. G5's Montec is the reference design, and TenPoint's EVO-X version is the same thing built by G5 and specified for high-speed crossbows.

An assembled head — the Slick Trick, with four replaceable blades in a Super Steel ferrule and an Alcatraz blade lock — gives you a wider cut and replaceable edges, at the cost of parts that can move.

Blade thickness, which decides what survives bone

Published figures: .027 in on the Wasp Boss, .032 in on the Ramcat, .035 in on the Slick Trick. QAD publishes none for the Exodus, and neither Montec publishes one — a one-piece head has no separate blade to quote. A thicker blade survives a shoulder; a thinner one takes a finer edge. For a quartering shot on a mature animal, prefer .035 in or more.

Ferrule length, which decides wind planing

This is the fixed head's weakness: blade area forward of the shaft acts as a lever for crosswind. A short ferrule reduces it. QAD's Exodus is built around this — a deliberately very short body with a steep cutting angle, in a version specified for crossbow bolts — and Wasp's Boss uses a short aerodynamic aluminum ferrule for the same reason.

Spin-test discipline

G5 states every Montec is 100 percent spin-tested before shipping. That is a quality claim, not a substitute for your own check: spin each head on the shaft and look for tip wobble before every hunt.

The Ramcat, which does something different

A pivoting head: it moves on impact so the arrow keeps driving forward even against bone, with .032 in rear-sharpened blades cantilevered over the shaft. Rear-sharpened means the blades keep cutting if there is no pass-through. And the listing states it meets broadhead regulations in all 50 states, which no other head here says.

Tuning, which fixed heads demand

A fixed head will show you every flaw in your bow's tune. Mechanicals forgive, because they are closed and shaped like a field point. If your fixed heads do not group with your field points:

  1. Spin test every head. A wobbling head cannot fly straight.
  2. Check nock fit and indexing. A half-moon nock out of index changes string contact.
  3. Check for an uneven cock. The most common cause of a flier people blame on the arrow. See how to cock a crossbow.
  4. Try a shorter head. The QAD Exodus exists for exactly this.
  5. Try a mechanical. Not a defeat — a closed head is genuinely more forgiving of tune.

What we would buy

The G5 Montec M3 for one-piece 420 stainless you can resharpen and use again. The TenPoint EVO-X Montec if you shoot a fast bow and want the version specified for it. The Slick Trick GrizzTrick if you want the widest fixed-head cut here and accept the extra parts. The QAD Exodus if your fixed heads have never grouped well — its short body is the fix.

Fixed heads earn their keep on heavy bone, which is why they are the default recommendation on best crossbow for elk hunting — a page ranked on published kinetic energy rather than speed.

The same structural argument, applied to one specific animal, is on best crossbow broadheads for hogs: against a mature boar's shoulder shield a narrow one-piece head penetrates where a wide one stops.

Frequently asked questions

Are fixed blade broadheads better for crossbows?
For reliability and penetration, yes. There is nothing to open, nothing to fail, and no energy spent deploying blades — which is why one-piece fixed heads are the choice when a failure is unacceptable. The cost is that they plane in wind and demand a well-tuned bow.
What is the best fixed blade broadhead?
The G5 Montec M3 for reusability: one solid piece of 420 stainless steel, 100 percent spin tested, resharpenable. TenPoint's EVO-X Montec is the same design built by G5 and specified for high-speed crossbows.
How thick should broadhead blades be?
At least .035 inch if you expect to hit bone. Published figures here run from .027 inch (Wasp Boss) to .039 inch (Rage Hypodermic), with .035 inch on the Slick Trick. Several heads publish no thickness at all. Thicker survives a shoulder; thinner takes a finer edge and holds it less well against hard contact.
Why do my fixed blade broadheads not group with field points?
Usually tune. Spin test every head for tip wobble, check nock fit and indexing, and check for an uneven cock — which is the most common cause of a flier people blame on the arrow. A shorter head like the QAD Exodus planes less and often fixes it.
Can you resharpen a fixed blade broadhead?
One-piece steel heads, yes — the G5 Montec M3 is designed for it, which makes a head survive more than one animal. Assembled heads with replaceable blades are generally re-bladed rather than resharpened.
